Highlight:
                                                                                                                                                                                                            Overcharge Protection 12V Lithium Batteries, Emergency Industries 12V Lithium Batteries, Medical Industries 12V Lithium Batteries


Feature:	Emergency Support For Equipment	Brand:	Link-w
MAXIMUM CHARGING CURRENT:	10A	Origin:	China
Over-discharge Protection:	Yes	SIZE:	330170210MM
Electromagnetic::	Anti-interference

Feature:	Emergency Support For Equipment
Brand:	Link-w
MAXIMUM CHARGING CURRENT:	10A
Origin:	China
Over-discharge Protection:	Yes
SIZE:	330170210MM
Electromagnetic::	Anti-interference

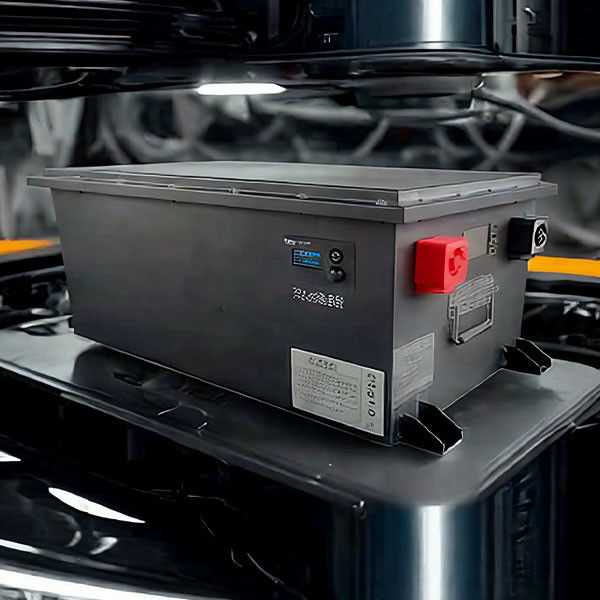

Overcharge Protection 12V Lithium Batteries In Medical And Emergency Industries

Overcharge Protection 12V Lithium Batteries for Medical and Emergency Applications

Product Specifications

Feature	Emergency support for equipment
Brand	link-w
MAXIMUM CHARGING CURRENT	10A
Origin	China
Over-discharge protection	Yes
SIZE	330170210MM
Electromagnetic	Anti-interference

Key Advantages

High Energy Density: Compact size with extended operation times for medical devices and emergency equipment
Fast Charging: Rapid recharge capability minimizes downtime in critical situations
Enhanced Safety: Built-in protection against overcharging, over-discharging, short circuits, and overheating
Reliable Performance: Complies with UL, CE, and IEC safety standards for medical applications

Medical Industry Applications

Power source for portable medical devices (infusion pumps, patient monitors, ultrasound machines)
Essential equipment in medical emergency vehicles (ventilators, defibrillators)
Backup power for hospital critical systems during outages

Emergency Response Applications

Emergency lighting and signaling systems
Power for communication equipment (two-way radios, satellite phones)
Mobile power stations for field operations

Technical Parameters

Electrical Specifications
Nominal Voltage	12V
Capacity Range	20Ah - 100Ah (customization supported)
Charging Voltage	14.4 - 14.6V
Maximum Charging Current	10A - 20A (adjusted according to capacity)
Continuous Discharge Current	30A (maximum sustainable)
Discharge Cut-off Voltage	10.5V
Overcharge Protection Features
Overcharge Detection Accuracy	±0.02V
Overcharge Response Time	≤100ms
Overcharge Cut-off Voltage	14.8V (fine-tunable)
Durability & Safety
Cycle Life	≥2500 times (0.5C charge-discharge depth)
Service Life	6 - 8 years (normal operating conditions)
Protection Rating	IP65 (dustproof and waterproof)
Flame Retardant Standard	UL 94 V-0 certified
Physical Specifications
Dimensions	Customized (e.g., 50Ah: 260mm×166mm×175mm)
Weight	Varies by capacity (e.g., 50Ah: ~6KG)
Shell Material	Medical-grade ABS, antibacterial and corrosion-resistant
Environmental Specifications
Operating Temperature	Charging: 5℃ - 40℃	Discharging: -10℃ - 50℃
Storage Temperature	-20℃ - 35℃ (dry environment)

Installation & Maintenance Guidelines

Select battery based on equipment power requirements (capacity, discharge rate, temperature range)
Follow manufacturer's installation manual for safety precautions
Ensure proper ventilation to prevent overheating
Use high-quality wiring and connectors rated for battery specifications
Perform regular inspections for damage and monitor charge levels
