Product Details
Place of Origin: CHINA
Brand Name: Link-W
Model Number: 3.2V 170AH
Payment & Shipping Terms
Minimum Order Quantity: 500PCS
Price: USD12.88-40.31/PC
Packaging Details: Packing and palletizing
Delivery Time: 10-25 work days
Payment Terms: T/T，30%perpayment and 78% final payment
Supply Ability: Trade
|
Nominal Voltage:
|
3.2V
|
Nominal Capacity:
|
3.2V 180AH / 190AH / 202AH / 230AH
|
Charging Voltage:
|
3.65V
|
Max. Charging Current:
|
1C Continuous, 2C For 30s @25°C
|
Discharge Cut-off Voltage:
|
-30°C: 2.0V / 0-55°C: 2.5V
|
Weight:
|
3.9KG
|
Dimensions:
|
54 * 173 * 207MM
|
|
Nominal Voltage:
|
3.2V
|
|
Nominal Capacity:
|
3.2V 180AH / 190AH / 202AH / 230AH
|
|
Charging Voltage:
|
3.65V
|
|
Max. Charging Current:
|
1C Continuous, 2C For 30s @25°C
|
|
Discharge Cut-off Voltage:
|
-30°C: 2.0V / 0-55°C: 2.5V
|
|
Weight:
|
3.9KG
|
|
Dimensions:
|
54 * 173 * 207MM
|

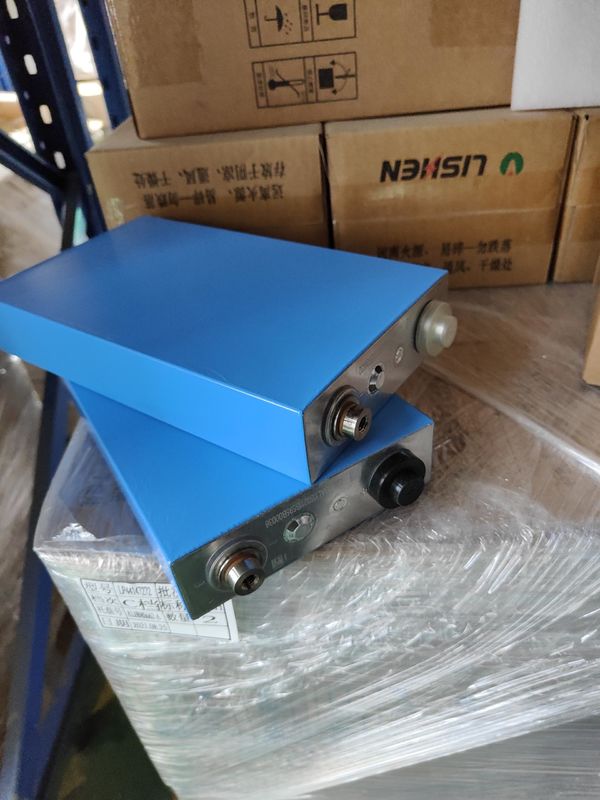

Link-W Robust & Adaptive Battery Cell for Marine, Solar, and Industrial Use
Product Introduction:
Engineered for reliability across diverse sectors, the Link-W Lithium-Ion Battery Cell is built to perform. Its compact form factor (54 * 173 * 207MM) and substantial weight (3.9KG) indicate a solid construction suited for challenging environments. Ideal for powering marine vessels, supporting renewable energy systems like solar panels, and various urban or industrial applications, this cell is a cornerstone for modern power solutions.
Advantages:
Parameter Table:
Q&A:
Q: Which application scenario is this battery best suited for?
A: It is exceptionally versatile. The image highlights suitability for marine (boats), urban infrastructure, solar power, and other industrial applications. Its high capacity and robust design make it ideal for any situation requiring reliable, sustained power.
Q: Why are there different discharge cut-off voltages for different temperatures?
A: This is a smart protective feature. At very low temperatures (-30°C), battery chemistry is less efficient. Setting a lower cut-off voltage (2.0V) allows for more usable energy to be extracted safely without damaging the cell.
Q: Is the weight of 3.9KG typical for a battery of this capacity?
A: Yes, the weight is consistent with a high-quality, high-capacity lithium iron phosphate (LiFePO4) cell of these dimensions. The weight reflects the substantial amount of active material inside, which is necessary to achieve the high energy storage (180-230AH).
